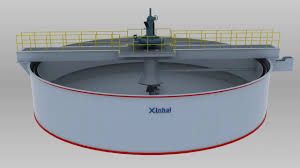

Efficient Improved Thickener
Manufacturer: Xinhai
- Product Introduction : A new efficient thickener independently developed by Xinhai
-
Capacity : 5-1400t/d
- Product Improvement : This thickener is patent product of Xinhai, patent No. 201010521662.5. After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration
-
Advantages
Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block
Oblique feeding instead of horizontal feeding solves the blockage problem
A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.
-
3D Exploded Video
Every single part and working principles of Efficient Improved Thickener are showed in Xinhai 3D video, which is really convenient for you to see the structure and working principles of those large equipment.
Product Detial
| Model | Tank Diameter (mm) | Tank Depth (mm) | Subsidence Area (m2) | Capacity (t/d) |
Motor Model | Motor Power (kW) |
Steel Tank Weight (kg) | Weight (kg) |
| NZSG-2.5 | 2500 | 1850 | 4.9 | 5 ~22.4 | Y90L-6 | 1.1 | 1000 | 2225 |
| NZSG-3A | 3000 | 1800 | 7 | 5 ~23.3 | Y100L-6 | 1.5 | 1664 | 3168 |
| NZSG-3 | 3600 | 1800 | 10.2 | 5 ~28.5 | Y100L-6 | 1.5 | 2097 | 3680 |
| NZSG-5 | 5000 | 2956 | 16 | 16 ~90 | Y90L-4 | 1.5 | 5160 | 8031 |
| NZSG-6 | 6000 | 2956 | 28.3 | 98 | Y90L-4 | 1.5 | 5769 | 9200 |
| NZSG-7 | 7000 | 3000 | 38.5 | 140 | Y112M-6 | 2.2 | 8800 | 13862 |
| NZSG-8 | 8000 | 3318 | 50.2 | 185 | Y132S-6 | 3 | 12966 | 19158 |
| NZSG-9 | 9000 | 3376 | 63 | 210 | Y132S-6 | 3 | 15418 | 21733 |
| NZSG-12 | 12000 | 3600 | 113 | 370 | Y132S-6 | 3 | 25589 | 34823 |
| NZSG-15 | 15000 | 3600 | 176 | 580 | Y132S-4 | 5.5 | 35800 | 54315 |
| NZSG-18 | 18000 | 4400 | 255 | 960 | YCT200-4B | 7.5 | 52485 | 73588 |
| NZSG-20 | 20000 | 4400 | 315 | 1400 | YCT200-4B | 7.5 | 59365 | 76312 |
The vertical axis rotates driven by motor, and pulp by feeding device flows into the tank center feed mixing barrel.Solid material in the bottom of the tank by the scraper moves out of center; clarified overflow through the tranquil flow device flows out from the ring external overflow weir.

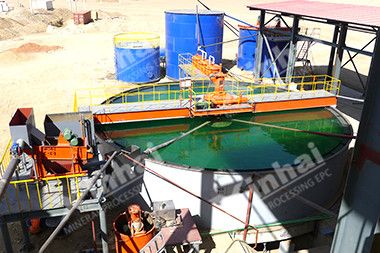

It is widely used for dealing with slime, wastewater, waste residue in metallurgy, mine, coal, petrochemical industry, building materials, environmental protection department etc.
