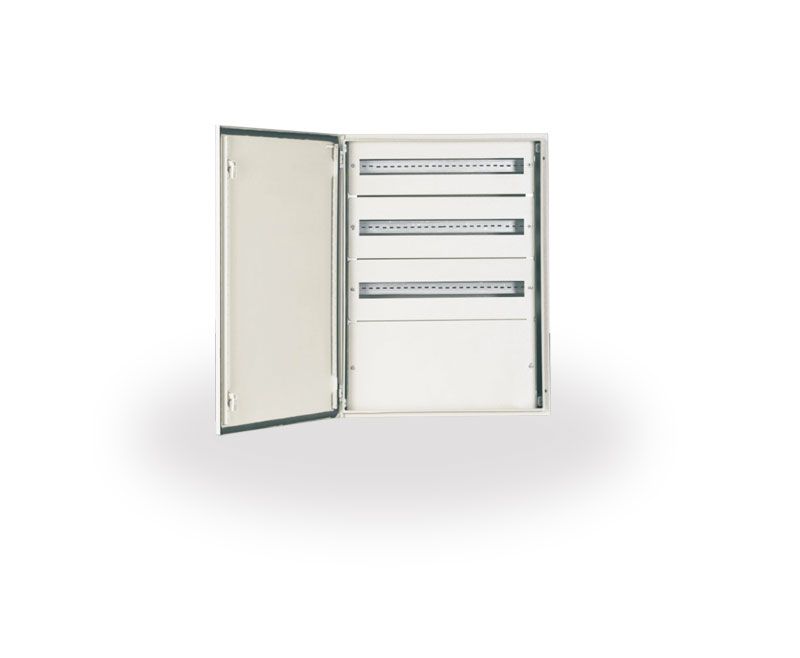

MDST Modular Kit For Steel Wall Mount Box
Manufacturer:
.png){kind=logo}
Product characteristics
MDST modular kit boxes are TIBOX specially designed for
MCBS.This kind of surface mounting boxes can assemble 9P
& 15P,21P,26P,38P MCBs each row, or adjust by your own.
Material: Sheet steel 1.2mm
Surface finish: epoxy polyester powder coating textured finish
Color: RAL 7035 OR RAL 7032
Model:MDST
Supply include: MDST modular kit pack: 1 piece

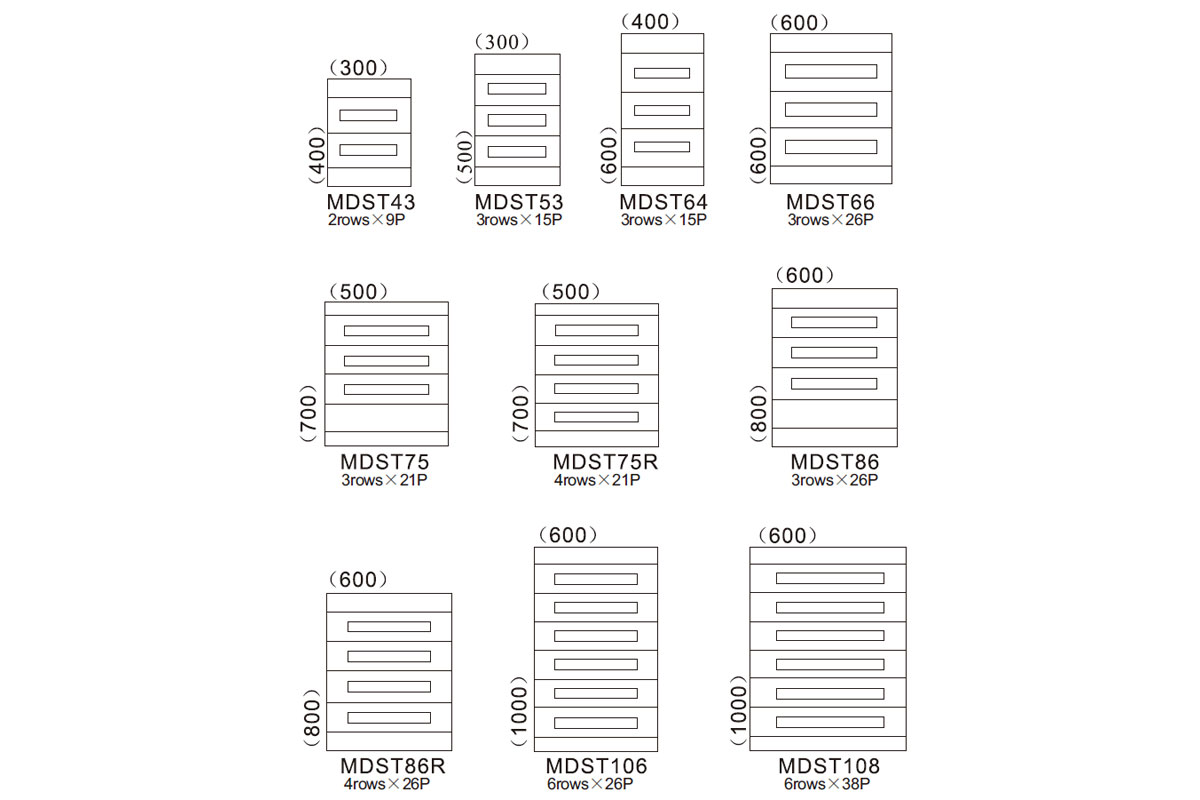

Model and size
| MODEL | DOOR（mm） | No.of breakers | Breakers qty PCS | No.of rows | |
| W | H | ||||
| MDST43 | 300 | 400 | 2rows×9P | 18 | 2 |
| MDST54 | 400 | 500 | 3rows×15P | 45 | 3 |
| MDST64 | 400 | 600 | 3rows×15P | 45 | 3 |
| MDST66 | 600 | 600 | 3rows×26P | 78 | 3 |
| MDST75 | 500 | 700 | 3rows×21P | 60 | 4 |
| MDST75R | 500 | 700 | 4rows×21P | 80 | 4 |
| MDST86 | 600 | 800 | 3rows×26P | 78 | 4 |
| MDST86R | 600 | 800 | 4rows×26P | 104 | 4 |
| MDST106 | 600 | 1000 | 6rows×26P | 158 | 6 |
| MDST108 | 800 | 1000 | 6rows×38P | 222 | 6 |
